Enterprise drones offer more advanced capabilities and improved design compared to consumer and commercial drones. With high accuracy GPS, RTK capabilities, advanced cameras and sensors, if you need a drone for mapping, surveying, advanced inspections, construction etc., which requires precision, reliability, and specialised data collection capabilities, then an Enterprise drone is the right choice for you.
Whether you need to create orthomosaics, aquire LiDAR data, mulitspectral imagery for data analysis, or thermal imagery, there's a camera or sensor for your application or project.
*The payloads below are compatible with the DJI Matrice 300 and Matrice 350 series.
DJI Zenmuse L2
A LiDAR + RGB Solution for Aerial Surveying.
Livox LiDAR Module
- Detection Range: up to 450m
- Effective Point Rate: 240,000 pts/s
- High-accuracy IMU with no warm up
- Supports 5 Returns
YellowScan LiDAR for drone product line are lightweight, fully-integrated with embedded batteries. YellowScan designed each system to meet 3D mapping high precision and accuracy needs.
Mapper
Easy mapping redefined
Start your LiDAR journey with our easy-to-use Mapper system. Its low weight, mid-range capability, top-end point density and advanced accuracy and precision, makes this LiDAR system the best value for money.
Cover 10ha in 3 minutes *flying at 70m AGL, 10 m/s, with 40% sidelap.
For optimized productivity, we recommend a balanced 10 m/s flight speed for optimal point density.
System Accuracy: 4 cm
System Precision: 4 cm
Typ. flight speed: 10 m/s
Typ. AGL altitude: 70 m
Laser Scanner Range: up to 130 m
Scanner: Livox Horizon
GNSS-Inertial solution: Applanix APX-15 UAV
Scanner field-of-view: 81.7 ° x 25.1°
Echoes per shot: Up to 2
Shots per second: Up to 240k
Scanning frequency: Up to 10 Hz
Weight battery excl. 1.3 kg (3.31 lbs)
Size: L 14.3 x W 9.8 x H 14.9 cm
Operating temperature: -10 to +40°C
Camera: Compatible with an optional RGB camera module
Advanced performance fitted into a compact survey solution. The YellowScan Mapper+ is the lightest three echoes and high-density LiDAR system.
Great quality data in any scenarios. Ideally suited for projects requiring higher flight speed. Flight operation speed from 5 to 20m/s with a flying height of up to 100m.
System Accuracy: 4 cm
System Precision: 3.5 cm
Typ. flight speed: 10 m/s
Typ. AGL altitude: 100 m
Laser Range: up to 230 m
Laser Scanner: Livox AVIA
GNSS-Inertial solution: Applanix APX-15 UAV
Scanner field-of-view: 70.4° x 4.5°
Echoes per shot: Up to 3
Shots per second: Up to 240k
Scanning frequency: Up to 10 Hz
Weight battery incl. 1.3 kg (2.9 lbs)
Size: L 15 x W 10.4 x H 12.8 cm
Operating temperature: -20 to +40°C
Camera: Compatible with an optional RGB camera module
A multi-platform LiDAR for geospatial survey scanning from air to ground. The Fly & Drive is a versatile, land vehicle or UAV-mounted, mobile mapping system that combines high-resolution laser scanning and precise positioning to collect geo-referenced pointclouds.
Years of research for a unique product. The Explorer is the first compact, versatile and long range platform on the market. It is the culmination of several years of research and development done by YellowScan, while closely working alongside customers and partners from around the world.
System Accuracy: 2 cm
System Precision: 2 cm
Typ. flight speed: 10 m/s
Typ. AGL altitude: 200 m
Laser Range: up to 300 m
Scanner: A YellowScan development
GNSS-Inertial solution: SBG Quanta Micro
Scanner field-of-view: 360°
Echoes per shot: Up to 5
Shots per second: Up to 500k
Scanning Frequency: Up to 165 Hz (selectable)
Weight battery excl. 1.8 kg (4 lbs)
Size: L 27 x W 11.8 x H 13.5 cm
Operating temperature: -10 to +40°C
Built-in 2MP global shutter RGB camera
Camera: Compatible with an optional Single 20MP/60MP or Dual 35MP RGB camera module
Complete more mission profiles with the YellowScan Voyager. The Voyager’s 100° laser scanner with its extremely fast data acquisition rate of up to 1800 kHz, makes this solution the best option for projects requiring the highest point density.
System Accuracy: 1 cm
System Precision: 0.5 cm
Typ. flight speed: 30 m/s
Typ. AGL altitude: 440 m
Laser Range: up to 1250 m
Scanner: RIEGL VUX-120
GNSS-Inertial solution: Applanix AP+ 30 AIR or AP+ 50 AIR
Scanner field-of-view: 100° x 20°
Echoes per shot: Up to 32
Shots per second: Up to 2.4 Million
Scanning Frequency: Up to 400 kHz (selectable)
Weight battery excl. 3.5 kg (8.3 lbs)
Size: L 36.9 x W 11.7 x H 18.3 cm
Operating temperature: -10 to +40°C
Camera: Compatible with an optional Single 20MP/60MP or Dual 35MP RGB camera module

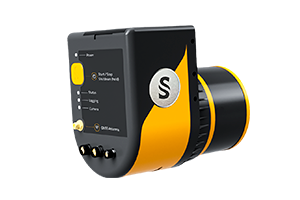

The YellowScan bathymetric LiDAR is an innovative solution for exploring underwater and ground topography with a single-button operation. Its lightweight design allows for versatile platform selection without compromising water penetration.
*We recommend you to comply with the maximum payload capacity defined by UAV manufacturers for each UAV
View more resources and information about LiDAR solutions at
Delair UX11 Line
Delair professional fixed wing drones are the ideal tool for aerial data acquisition faster and further. They can cover large surfaces per flight, flying smoothly and stable along the way.
Delair UX11
With RGB industrial camera. Survey and Map with ease.
Survey and Map with ease.
Endurance: up to 59 min
Total weight: 1.4 kg
Flight range: 53 km
Deployment time: 5 minutes
Sensor:
- Industrial-grade RGB 21.4 Mpix CMOS with global shutter
View more resources and information about fixed-wing drone solutions at
Quantum Systems
The eVTOL fixed-wing mapping drone for professionals. The Trinity F90+ demonstrates its range advantage in comparison to classic multicopters and other fixed-wing drones due to the longer flight time and covers up to 20 times larger areas. The larger the area to be covered, the more attractive the use of the Trinity F90+ gets.
The entire range of payload options for the TrinityF90Plus are characterised by the fact that they can be changed in a snap. True plug & play within seconds!
View more resources and information about Quantum Systems
Software and Apps
Image processing software and apps for all your surveying and mapping needs. Please contact our sales team for more information about each software, our training services and support, or other software and apps that are not shown below.
Trimble Business Center
Complete field-to-finish solution for all your geospatial software needs.
