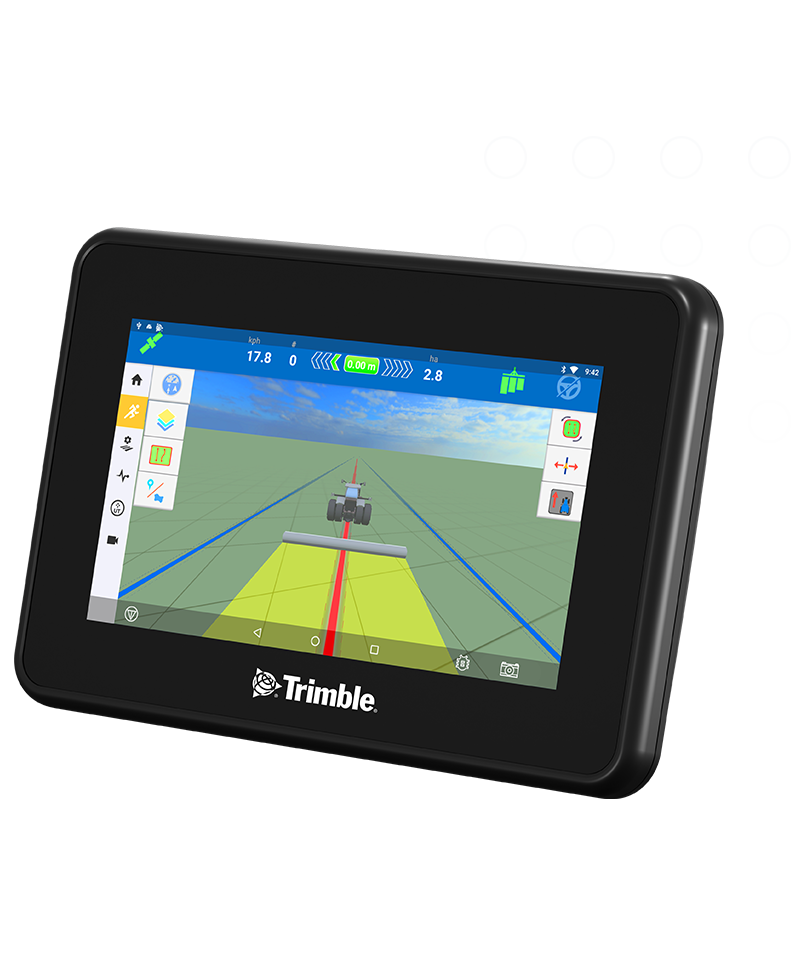

GFX-350 display
Overview
The GFX-350™ display is Android™-based and easy-to-use, helping growers tackle farming operations through every season and across equipment brands.
Specifications:
- 7 inch (17.8 cm) high-definition, color touchscreen display
- Android-based operating system
- Precision-IQ™ firmware
- 16 GB storage
- Optional ISOBUS task controller and universal terminal
- Control up to 2 input channels and 24 sections
- Connection for one USB, plus Bluetooth® and Wi-Fi connectivity

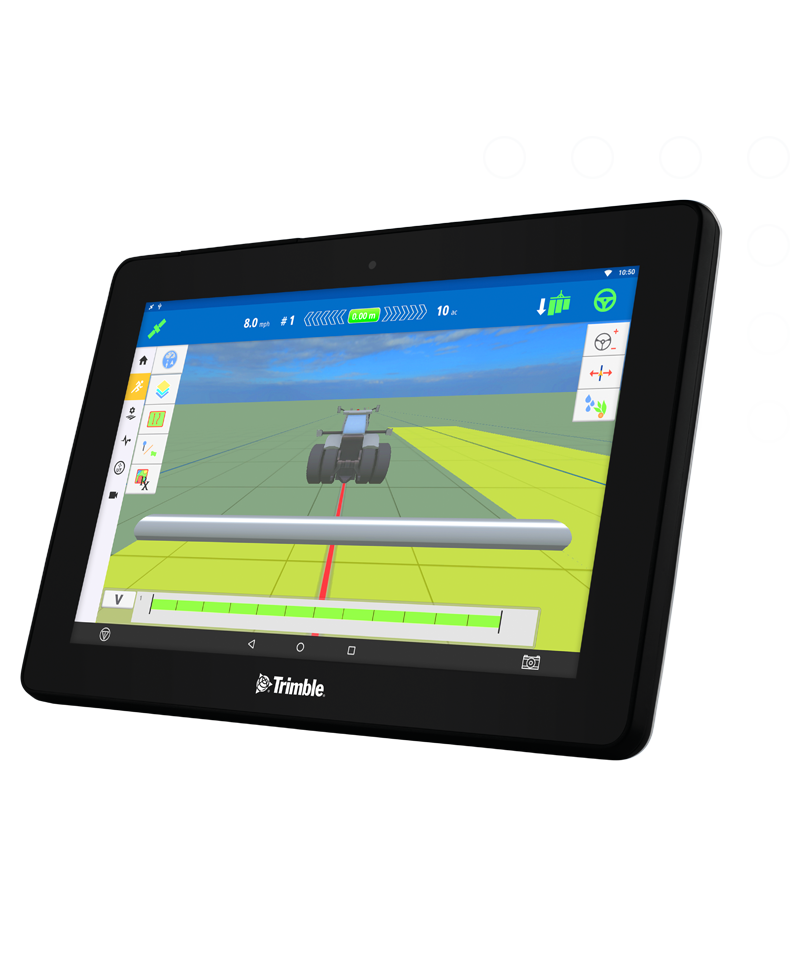

GFX-750 display
Overview
The GFX-750™ display is sleek and easy to use, providing a range of accuracy options alongside a variety of spraying, spreading and other application controls.
Specifications
- 10.1 inch (25.6 cm) high-definition, color touchscreen display
- Android-based operating system
- Precision-IQ™ firmware
- 16 GB storage
- Optional ISOBUS task controller and Universal Terminal
- Control up to 4 input channels and 255 sections
- One integrated camera with support for an additional external camera
- Connection for two USBs, plus Bluetooth® and Wi-Fi® connectivity
GFX-1060 display
Overview
The GFX-1060™ display is Trimble Agriculture’s latest 10-inch (25.6 cm) Android™-based display for controlling and executing all in-field work through the Precision-IQ™ platform. With powerful loading and processing speeds, this robust display makes handling even the most complex farm operations easy.Specifications
- 10 inch (12 cm) high-definition, color touchscreen display
- Android-based operating system
- Precision-IQ firmware
- 32 GB storage, 4 GB RAM
- Optional ISOBUS task controller and universal terminal
- Control up to 6 input channels and 255 sections
- Connection for two USBs, 1 BRR port, 3 CAN ports and support for 2 external cameras, plus Bluetooth® and Wi-Fi® connectivity
PTX Displays
Guidance controllers
- Home
- PRODUCT LINES

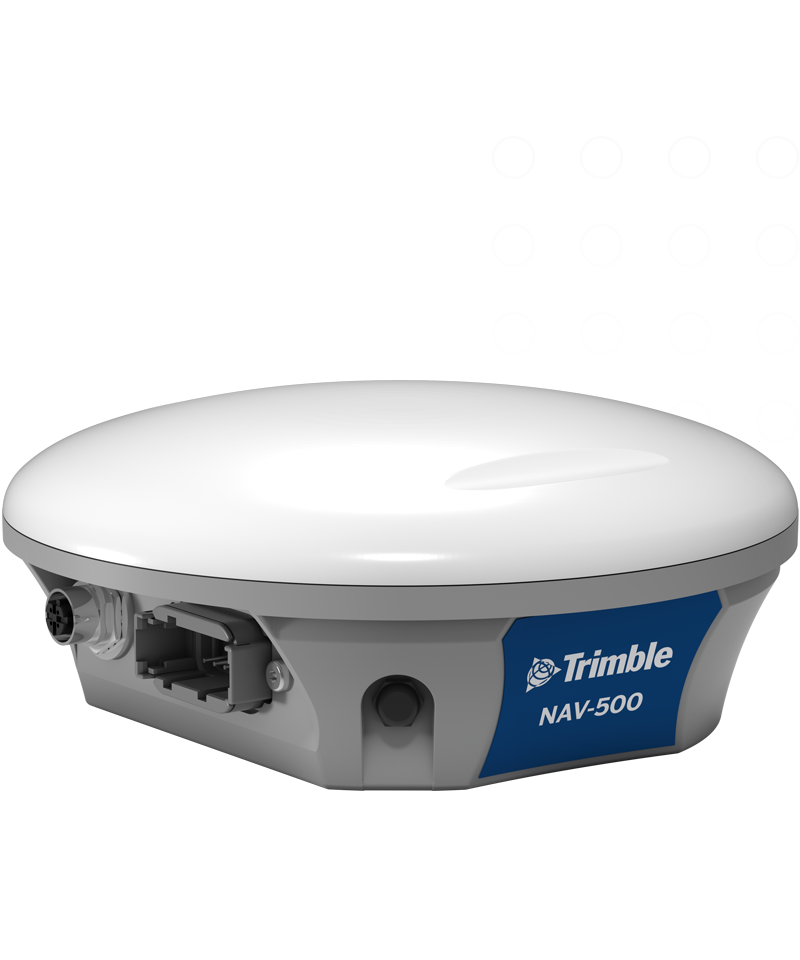

NAV-500 guidance controller
Overview
The NAV-500™ guidance controller, which is compatible with any Trimble GFX display, is an affordable precision solution for receiving positioning from multiple GNSS satellite constellations.
Benefits and performance
- Trimble’s guidance controllers bring added precision to a variety of operations. Here are just a few of the benefits the NAV-500 guidance controller brings to farmers around the world.
- Affordability meets precision, Get sub-meter, repeatable accuracy and full-farm coverage at a cost-effective price point.
- Trimble’s NAV-500 guidance controller mounted to the roof of a tractor with a corn field in the background.
- Flexibility for your farm’s needs, Stay on line for a range of farming activities, including tillage, broadacre seeding, spraying and harvest.

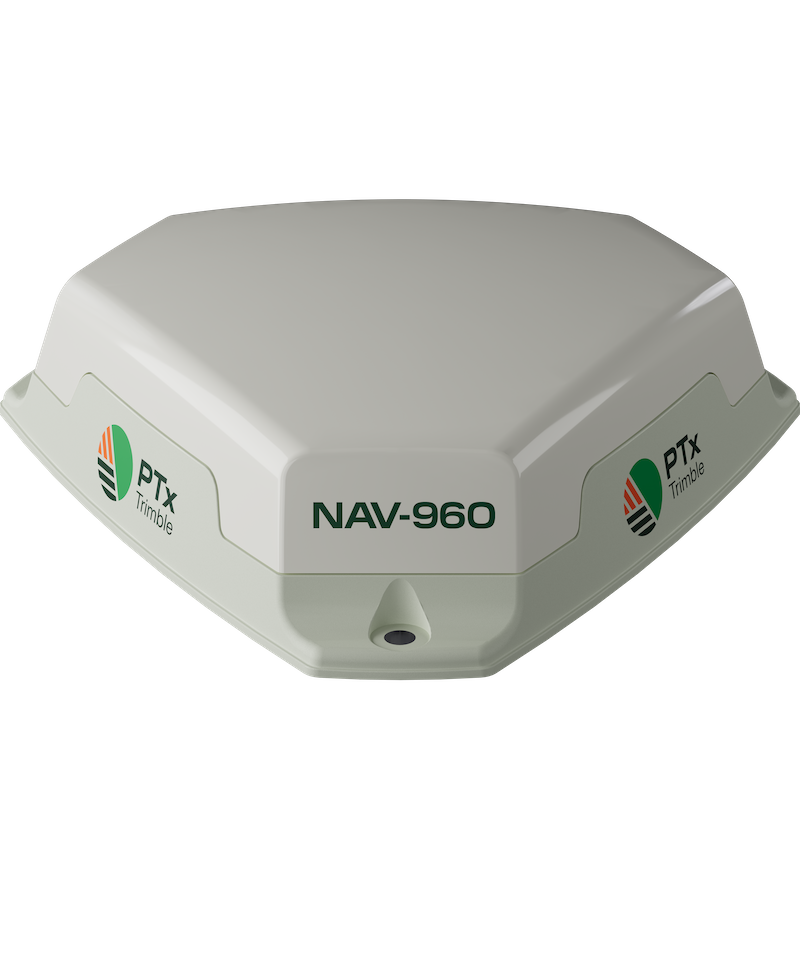

NAV-960 guidance controller
Overview
The NAV-960 guidance controller is PTx Trimble’s most advanced GNSS receiver, delivering excellent uptime for every field operation. Built for accuracy and savings, its IP66-rated assembly with solid aluminum base ensures years of worry-free use. The enhanced GNSS engine tracks more satellites, while the upgraded steering inertial sensor improves line following by up to 50%. IonoGuard technology optimizes performance during solar events, increasing uptime in challenging conditions.
Specifications
- Vehicle requirements: GFX display and compatible steering system
- Utilizes all major GNSS constellations: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
- Embedded connectivity for correction services: CenterPoint® RTX, RangePoint® RTX, SBAS (WAAS, EGNOS, MSAS), QZSS CLAS, xFill®, RTK and VRS
- Hydraulic steering installations require VDM-912

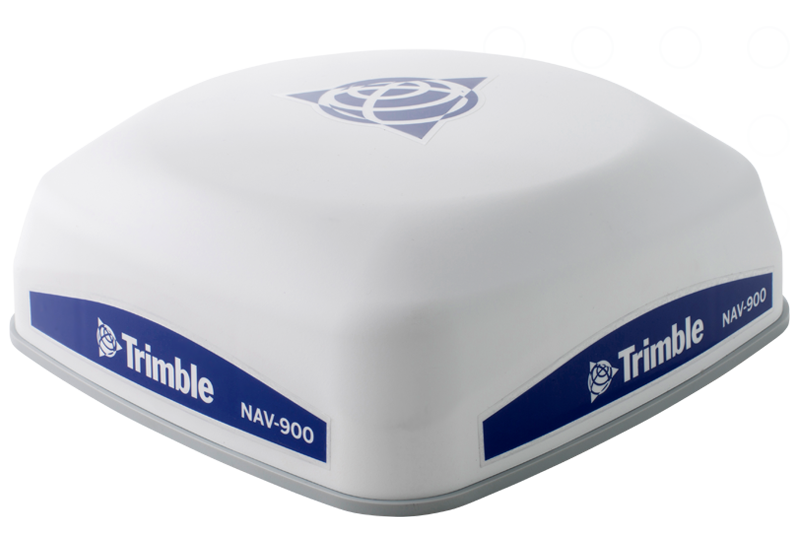

NAV-900 guidance controller
Overview
The NAV-900 guidance controller is Trimble’s most advanced GNSS receiver, built for maximum uptime and a wide range of accuracy options from basic to high precision.
Specifications
- Low-profile rugged housing
- Compatible with auto-guidance when combined with a Trimble GFX display and relevant steering system
- Built-in Bluetooth® for tethering and device connections
PTX Guidance control
Steering systems
- Home
- PRODUCT LINES

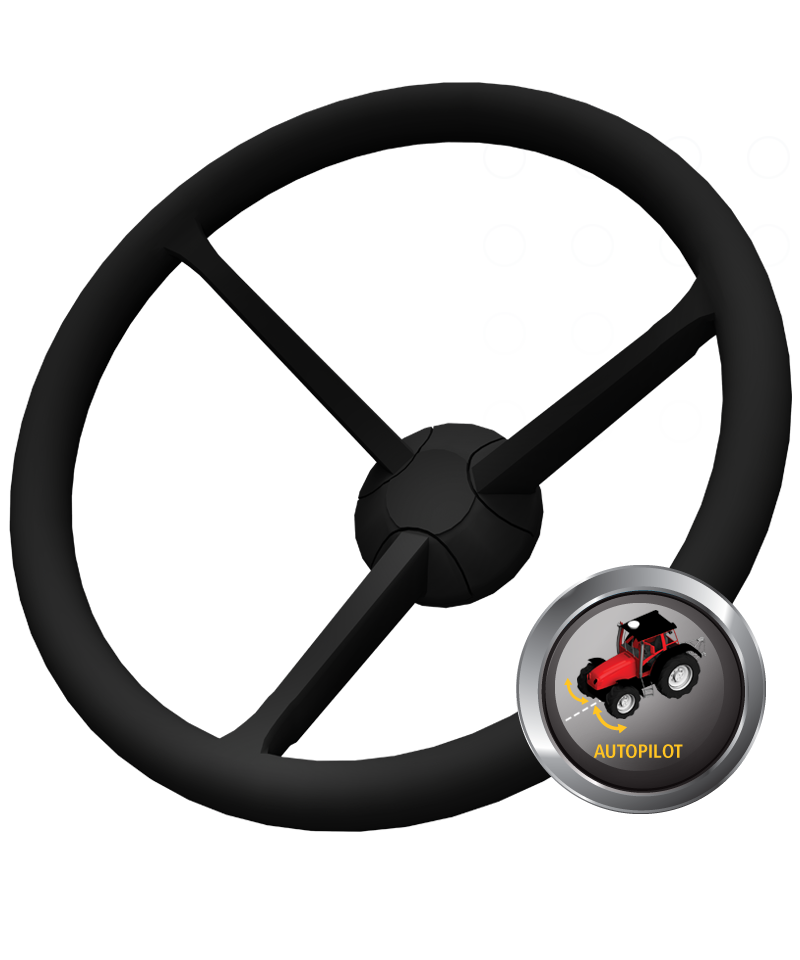

Autopilot automated
Overview
Trimble’s Autopilot™ automated steering system keeps your vehicle – including tractors, combines, sprayers and more – on the correct path, no matter the field pattern or terrain type, so you can focus on the task at hand.
Specifications
- Automatically steers your vehicle with one-inch repeatability (requires compatible positioning services, including CenterPoint® RTX or an RTK or VRS network)
- Integrates directly into your vehicle’s hydraulics
- Plugs into most guidance-ready vehicles
- Maximum speeds of up to 30 mph (40 kph)

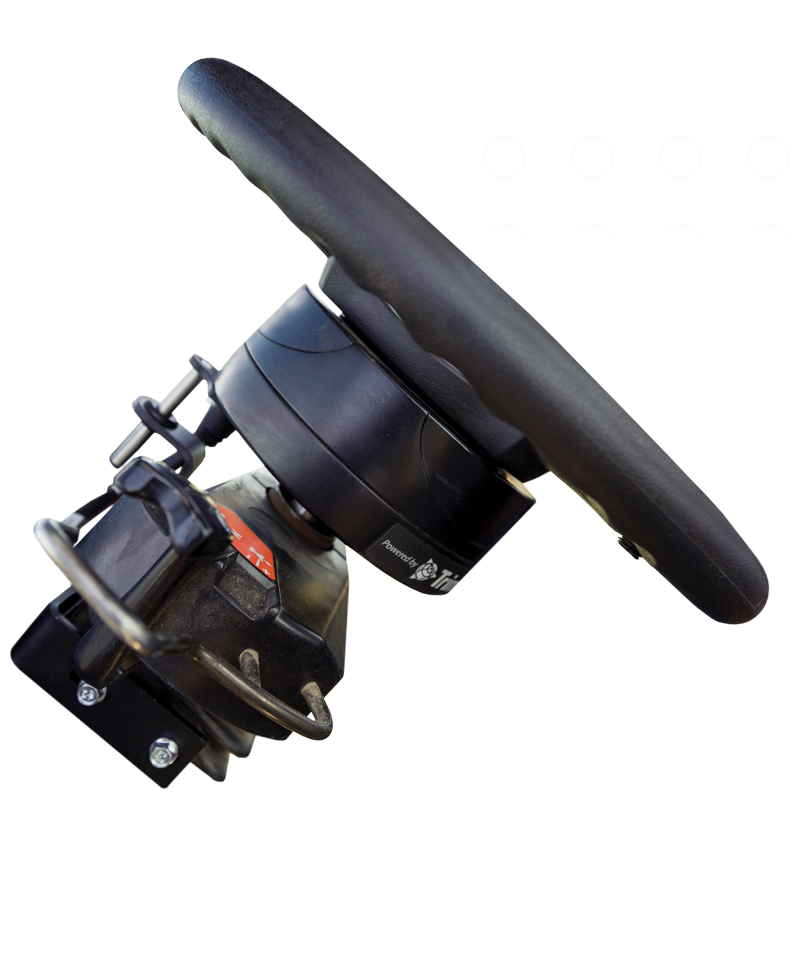

Autopilot motor drive system
Overview
Trimble’s Autopilot™ motor drive system controls tractors and harvesting machines – regardless of brand – with RTK accuracy, but without the need for hydraulic components.
Specifications
- Electric, hands-free, automated steering system
- Sub-inch accuracy from the NavController‑III, which uses T3™ sensors to calculate the actual position of the vehicle, minimizing skips and overlaps in areas with rolling terrain, slopes and rough ground
- Operates at slow speeds and in reverse

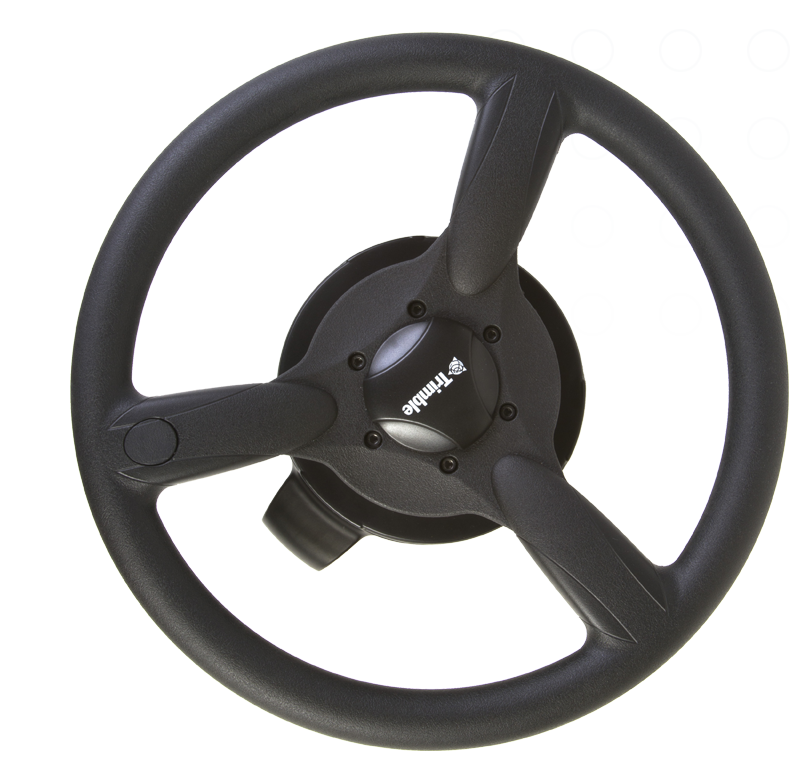

EZ-Pilot Pro steering system
Overview
Our EZ-Pilot® Pro steering system offers high-accuracy guidance across mechanical front-wheel drive (MFWD) and four-wheel drive (4WD) tractors, as well as combines.
Specifications
- T3™ sensors calculate the actual position of the vehicle to help minimize skips and overlaps in areas with rolling terrain, slopes and rough ground
- NextSwath™ 2 end-of-row turn technology (available when used with the NAV-900 guidance controller)
- Vehicles can be engaged in reverse for up to 15 seconds
- Vehicles stay engaged while stopped for up to 15 seconds
PTX Steering systems
Flow & application control
- Home
- PRODUCT LINES

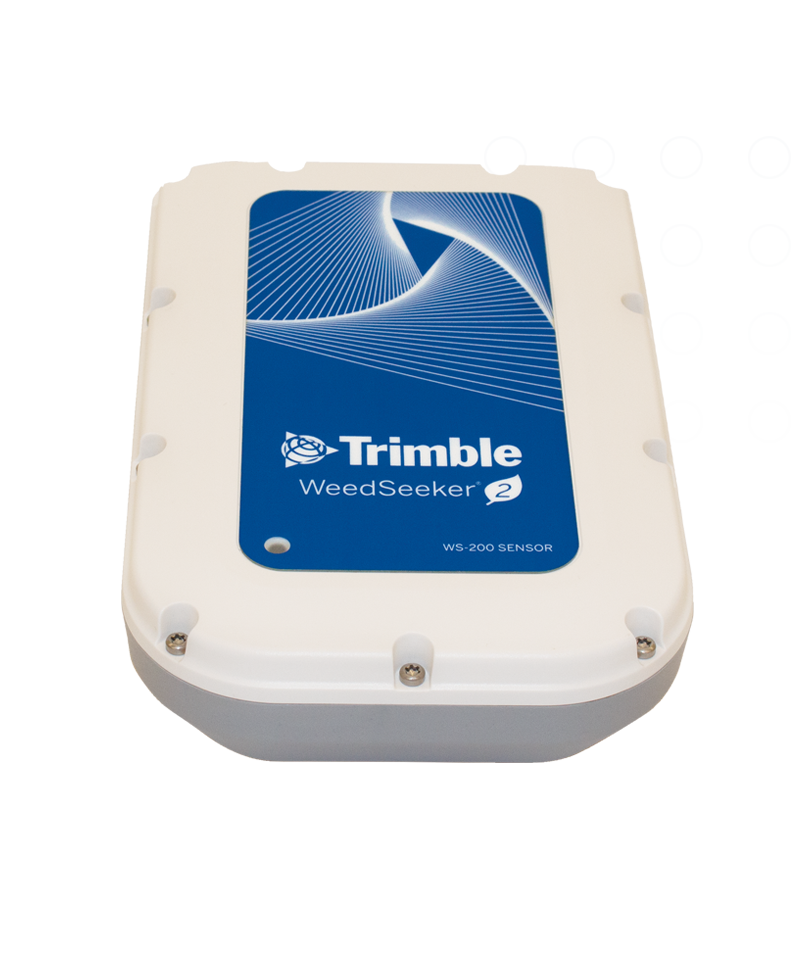

WeedSeeker 2 automatic
Overview
Trimble’s WeedSeeker® 2 automatic spot spray system delivers superior weed killing performance with unbeatable accuracy and efficiency, protecting your bottom line.
Specifications
- Intelligent sensor
- Lightweight sensors and cabling
- Weed mapping and automatic section control
- Automatic turn compensation
- Universal mount for easy installation
- Works with any ISOBUS-compatible display
Field-IQ crop input control system
Overview
Trimble’s Field-IQ™ crop input control system manages flow and application to prevent seed and fertilizer overlap, control the rate of material applied, monitor seed delivery and fertilizer blockage, and automatically control spinner speed for spreading.
Specifications
- Variable rate application control powered by Trimble’s Rawson® drives
- Automatic section control with option to add Tru Count Air Clutch® and Tru Count LiquiBlock™ Valves
- Seed monitoring
- Spinner speed control

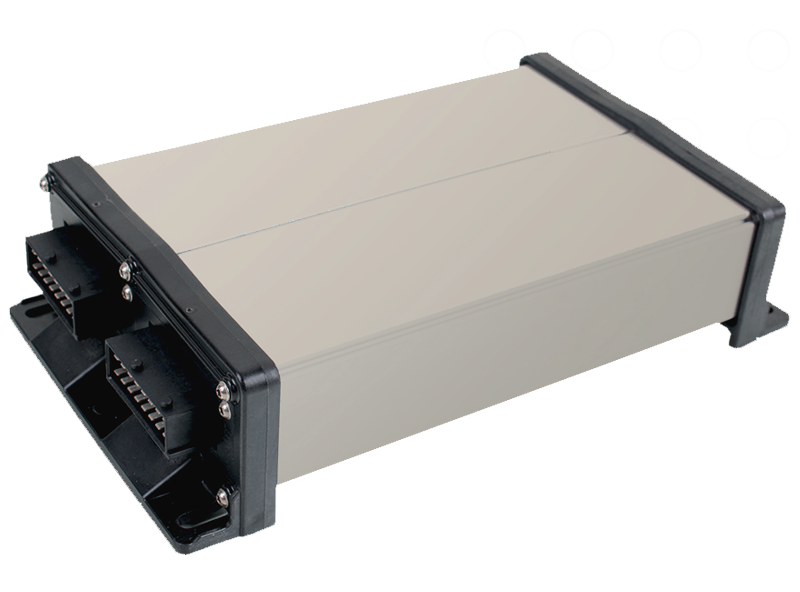

Field-IQ ISOBUS liquid control
Overview
The Field-IQ™ ISOBUS liquid control system provides an ISOBUS-compatible option for adding rate and section control solutions to sprayers, anhydrous toolbars and liquid toolbars.
Specifications
- Provides both rate and section control functions
- Connects to the implement with any ISOBUS terminal after ECU configuration
PTX Application control
Water management
- Home
- PRODUCT LINES

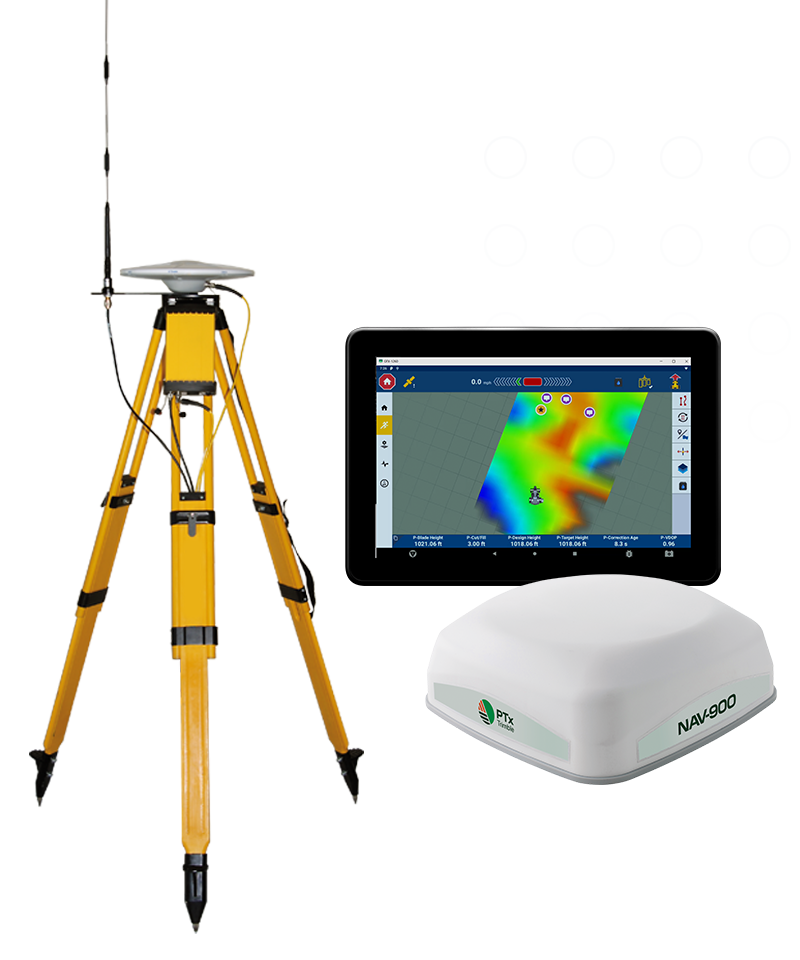

WM-Field Form
Overview
WM-FieldForm enables the planning and execution of single-scraper landforming for grading, leveling and terracing projects using Precision-IQ, the GFX-1260 display and the NAV-900 guidance controller.
Specifications
- Tractor requirements: GFX display and NAV-900 and compatible steering system
- Scraper requirements: machine control hardware and NAV-900 receiver
- RTK base station required for sub-inch vertical accuracy
- Designs can be created in-field with the AutoPlane design tool and a topographic survey, or with the Simple Plane design tool using benchmarks

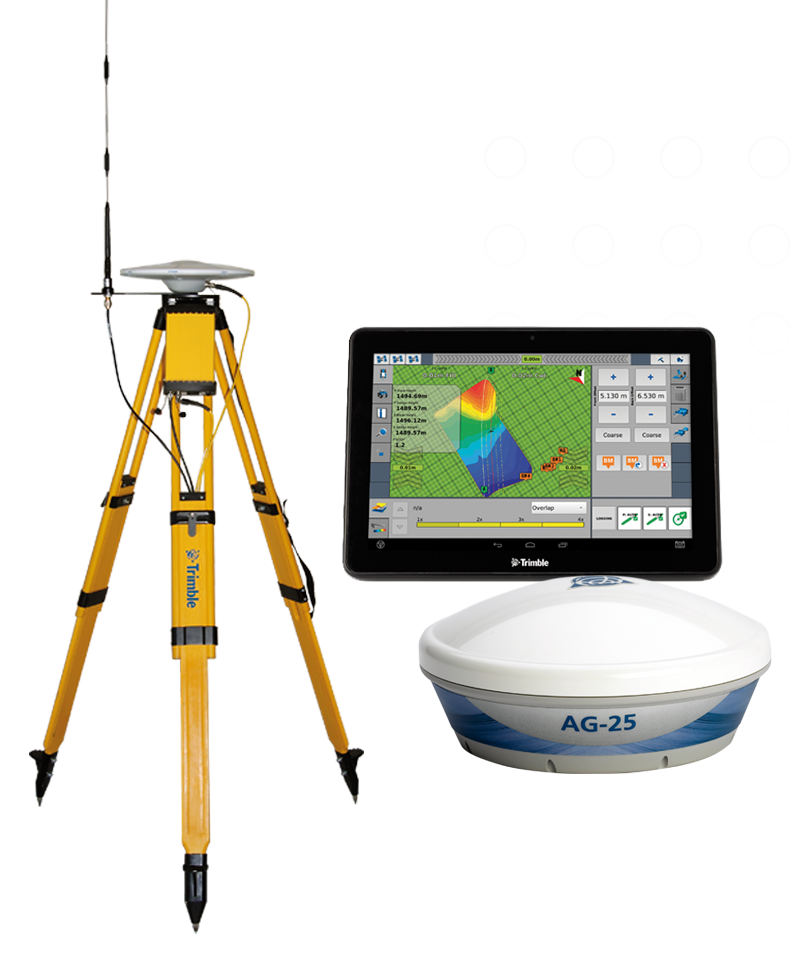

FieldLevel II system
Overview
The FieldLevel™ II system from Trimble is a comprehensive solution that streamlines surveying, designing and land-forming activities.
Specifications
- Includes FieldLevel II Survey and Design module installed on TMX-2050™ display
- Leveling components installed directly to the tractor’s hydraulic system or onto grading equipment
- 2D and 3D design options
- Options for complete levee design/guidance or manual guidance along a contour

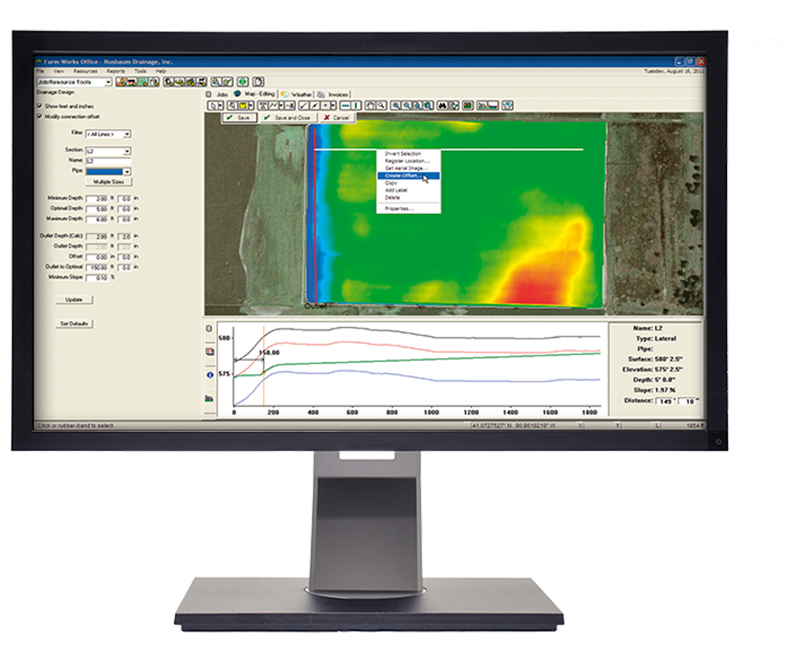

WM-Drain solution
Overview
The WM-Drain® solution is part of a concept-to-completion toolset that streamlines the survey, analysis, design, installation and mapping steps of surface and subsurface drainage.
WM-FieldDrain, our next-gen survey, design and installation solution for subsurface field drainage, is coming in early 2026! Stay tuned for more information.
Specifications
- Includes both software and hardware components
- T3™ Enhanced Terrain Compensation Technology facilitates roll-corrected 3D positioning
- Offers wireless data transfer between the farm office, vehicles and workers in the field
PTX Water management
Software & apps
- Home
- PRODUCT LINES

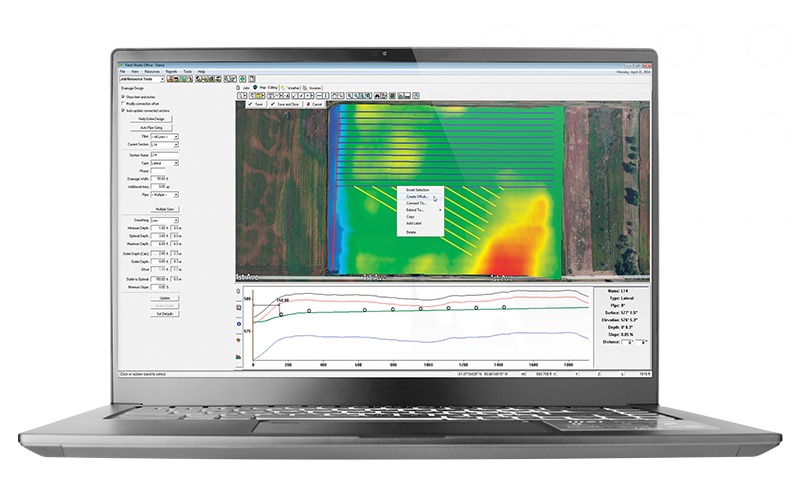

WM-Subsurface design software
Overview
WM-Subsurface™ design software works with Trimble’s WM-Drain® solution to ensure optimal placement of tile and drains in both surface and subsurface drainage projects.
Specifications
- View data from any angle and exaggerate the vertical to visualize field shape and slope
- Determine various watershed zones to assist with main, submain and lateral pipe placement
- Configure contours at any interval to help visualize topography and relative elevations
- Enable flow arrows and tributary lines to assist with tracing natural surface water flows

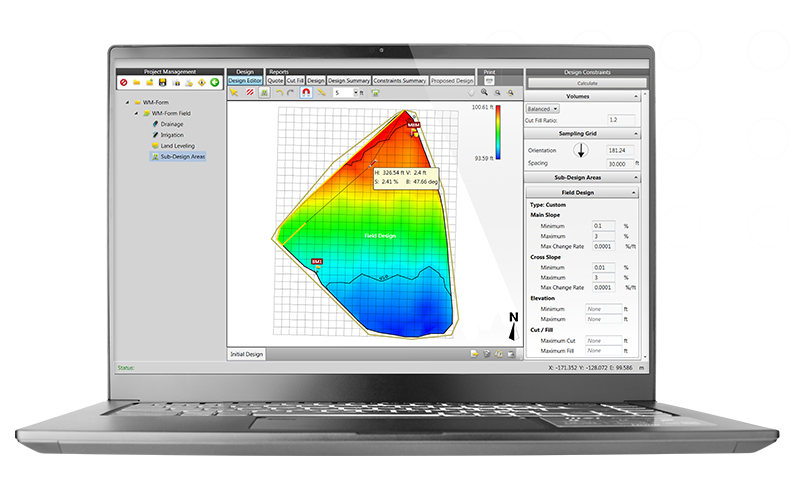

WM-Form design software
Overview
WM-Form® design software is a land forming solution that can help you fix underproducing fields, while also controlling the cost of earthworks and minimizing disturbance to valuable topsoil.
Specifications
- Grade fields with single or multiple planes using a best-fit or custom plane, or with multiple hinges
- Drain water in any direction or to a linear feature such as a ditch or existing drainage system
- Create multi-direction variable slope designs to optimize the surface for furrow irrigation
- Create section lines and design each section individually

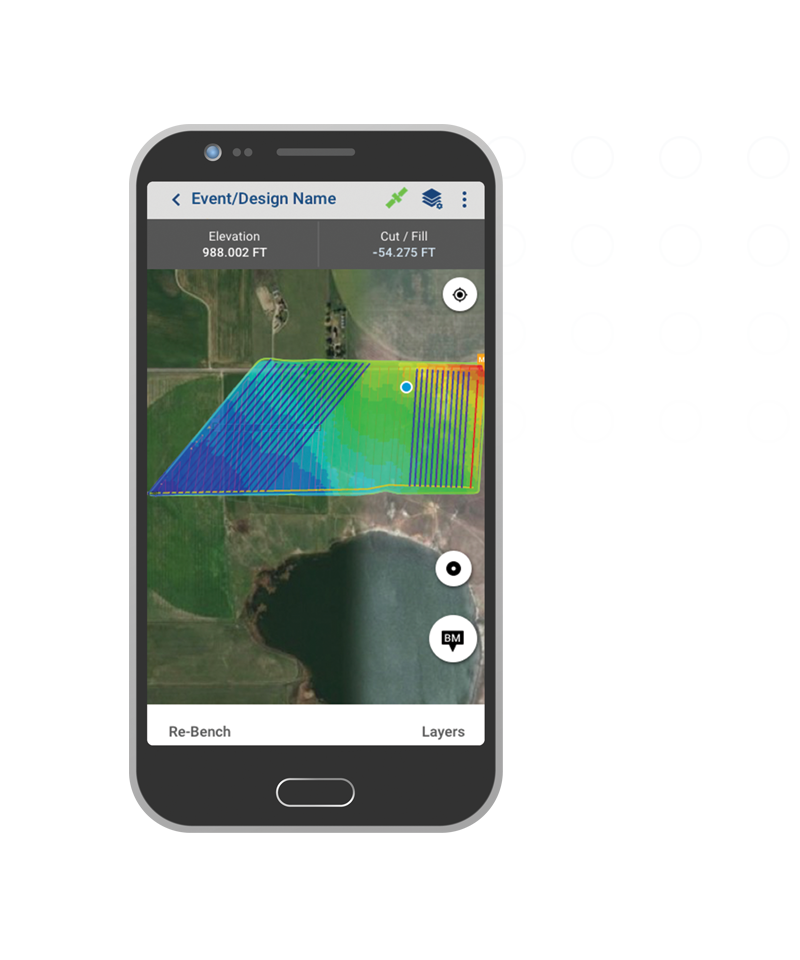

WM-Survey II app
Overview
The only tool you need to get started with water management activities.
WM-Survey II™ is a free-to-download mobile application that makes it easy to create basic field surveys for use in a variety of surface and subsurface applications. It can also automate the creation of terrace and waterway cross-section profile designs, as well as auto-create rice levee designs.
Specifications
- Please note, design features are not available on PTx Trimble displays and RTK correction is preferred for surveys to ensure a high-accuracy topographic map
- Phones and tablet compatibility: Android version 12 and above is recommended with GNSS receiver connected via Bluetooth®
- PTx Trimble display compatibility via App Central: GFX-750™, GFX-1060™, and GFX-1260™ displays connected to NAV-900 guidance controller for high-precision surveys, or the NAV-500™ guidance controller for low-precision surveys
